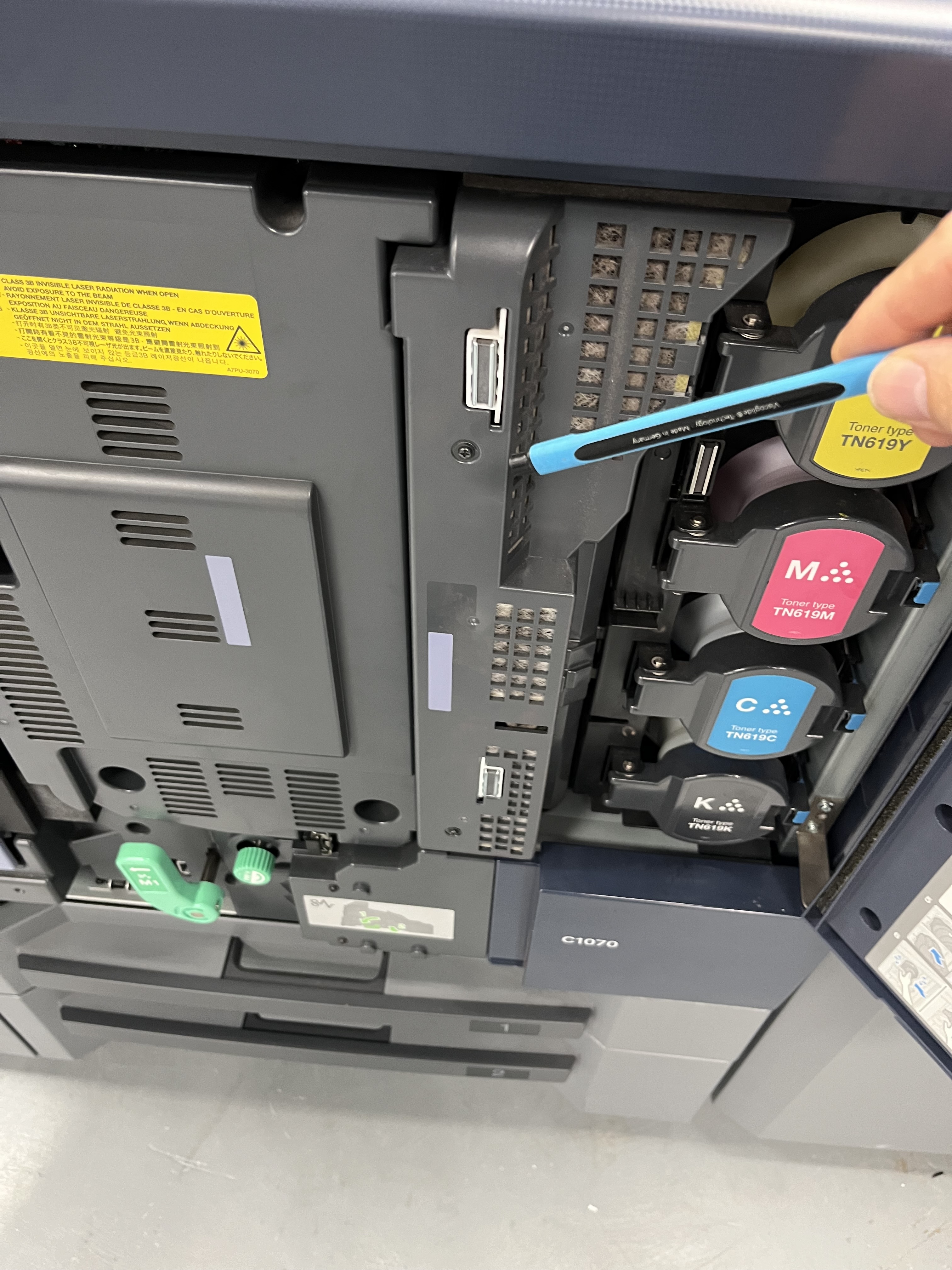

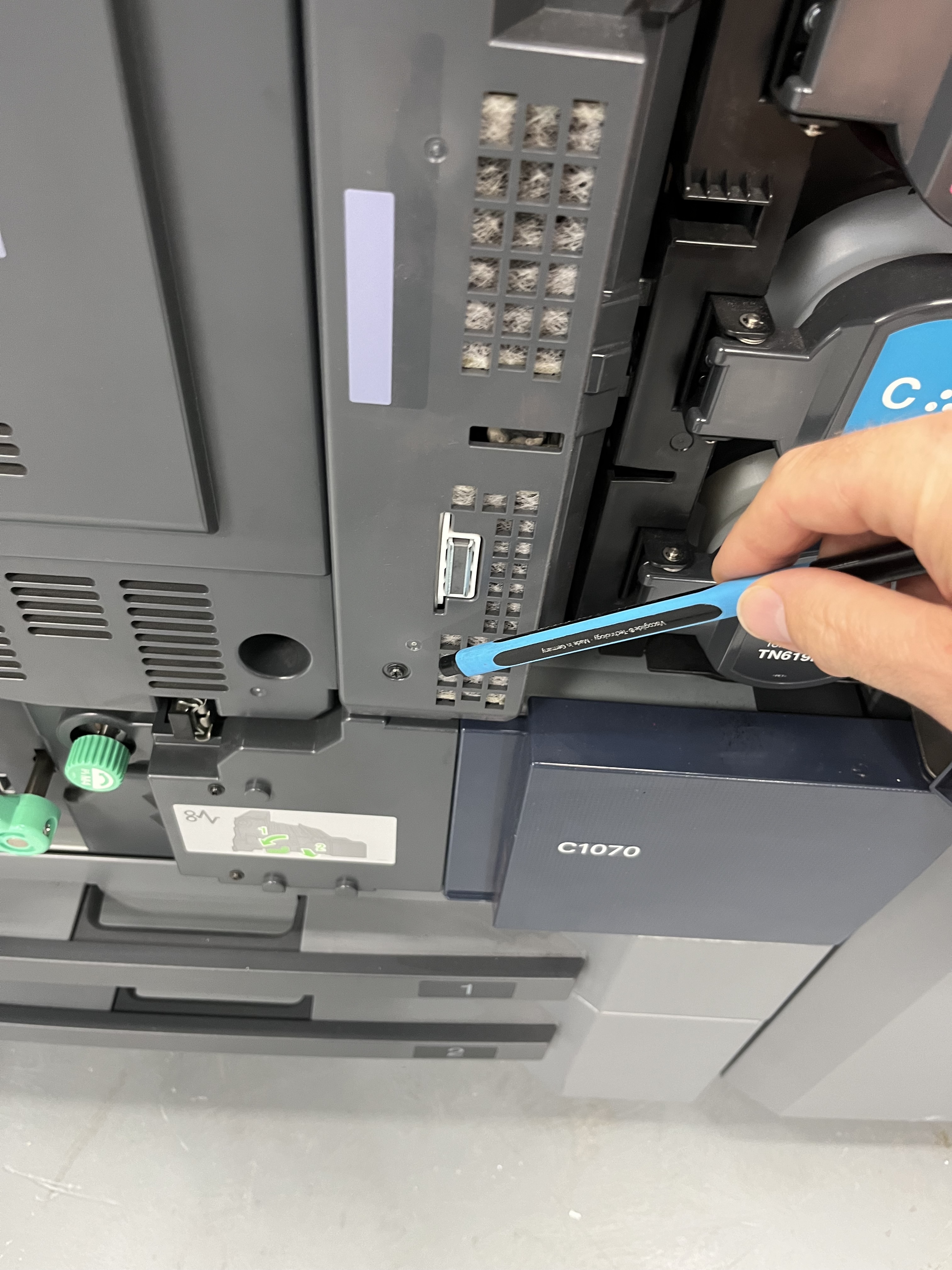

Reset the count for the dust proof filters.

Started by on 06 May 2021 – Last touched: 06 May 2021

06 May 2021 12:02 pm

Reset the count for the dust proof filters.

  1. Power the machine OFF from the main switch leaving the sub switch ON.
  2. Turn main power switch ON while pressing the Utility/Counter key. Keep holding it till the comes up in Service mode.
  3. 04 - Counter / Data
  4. 03 - Parts Counter
  5. 01 - Special Parts
  6. 02 - Waste Toner / Filter
  7. 004 Developing Dust Proof Filter/1, move arrow down to highlight
  8. Select the "Counter Clear" button to reset the count
  9. 005 Developing Dust Proof Filter/2, move arrow down to highlight
  10. Select the "Counter Clear" button to reset the count
  11. 006 PH Dust Proof Filter, move arrow down to highlight
  12. Select the "Counter Clear" button to reset the count
  13. Select "Return Button"
  14. Exit out of service
