Print Test Sheets from Service Mode

Started by on 18 Jan 2024 – Last touched: 18 Jan 2024

18 Jan 2024 01:13 pm

  1. Power the machine OFF from the main switch leaving the sub switch ON.
  2. Turn main power switch ON while pressing the Utility/Counter key. Keep holding it till the comes up in Service mode.

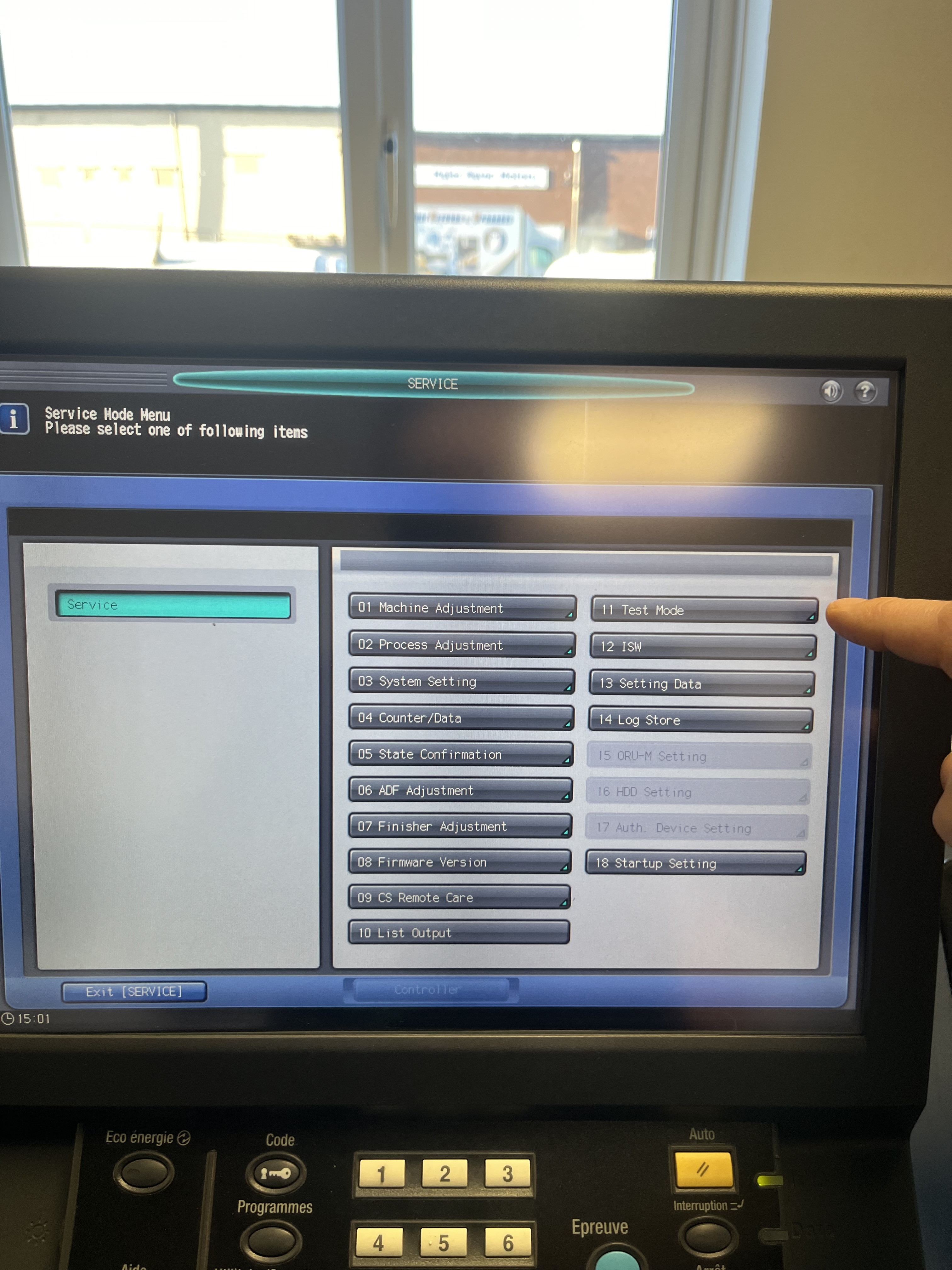

  • Select no 11
    Step 1

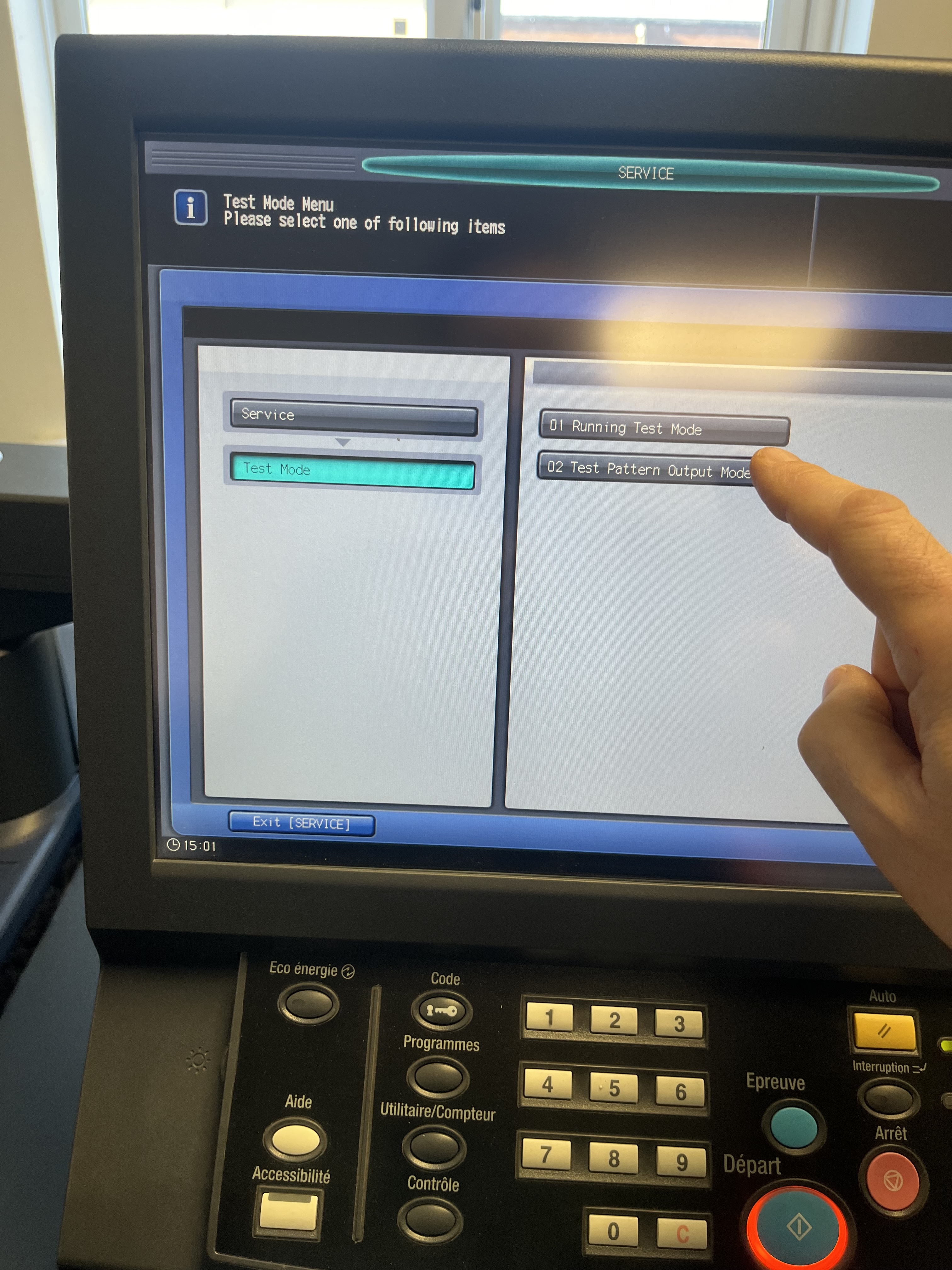

  • Select no. 2 Test Pattern Output Mode
    Step 2

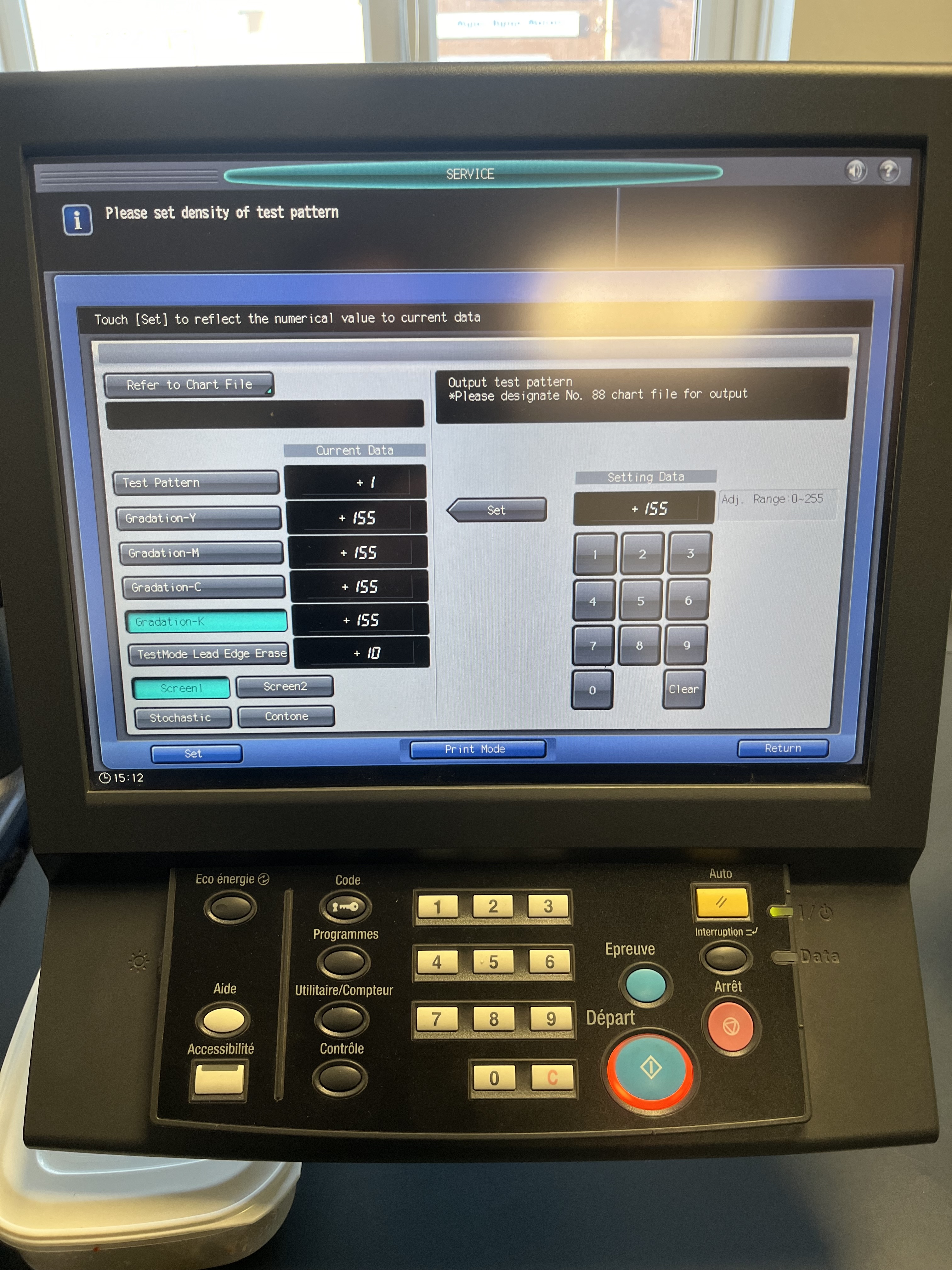

  • Set test pattern as per settings in picture and then select Print Mode at the bottom of the screen
    Step 3

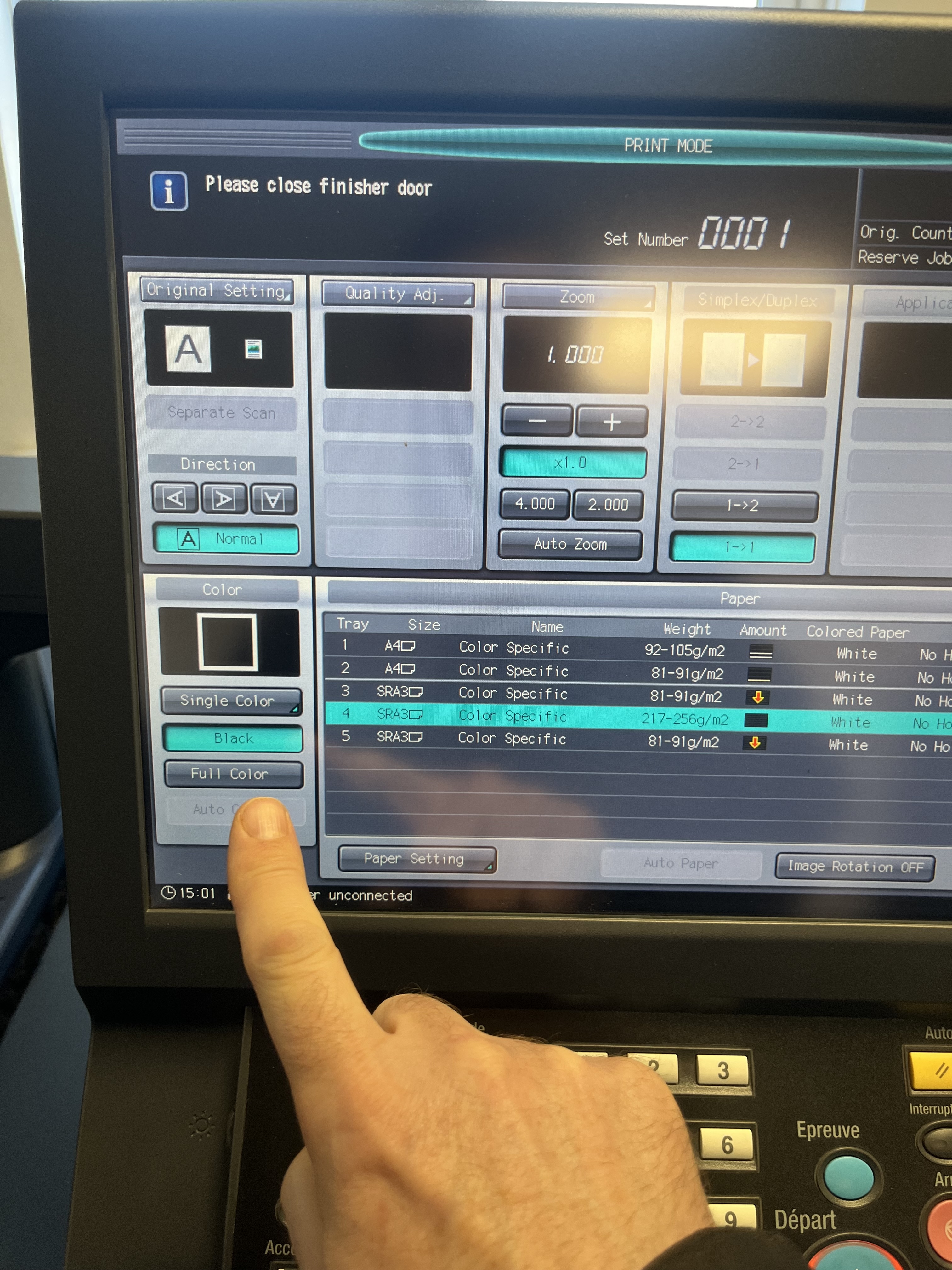

  • Carry out for black first and then repeat for Single Colour option, selecting Magenta/Cyan/Yellow
    Step 4
